Stage 1 · Frame extraction and MySQL storage

Turning raw aquarium video into a structured, frame-level dataset with persistent metadata.

Govinda Lienart · AquaMind · Stage 1

Videos: IMG_*.MOV · OpenCV · MySQL 8.4 (Docker) · 1 frame/sec

Abstract

Stage 1 converts raw aquarium video into a structured, frame-level MySQL dataset in two steps: each video is registered once, along with its metadata, in a MySQL videos table, then sampled at one frame per second into a frames table foreign-keyed back to it, so each frame stays traceable to the video it came from. The result is a reproducible ingestion layer: consistent 1 FPS (frames per second) sampling, JPG frames on disk, and structured metadata across two relational tables in a Dockerised MySQL database, forming the foundation the annotation and training stages build on.

Introduction

AquaMind measures fish behaviour from video, but the first model in the pipeline, the object detector, learns from still images, not from a continuously playing file. Bounding boxes are drawn on single frames, and each label must be attached to the frame it belongs to, so frames need to be findable again later by frame number.

A folder of image files does not give that. It says nothing about which video a frame came from, what the tank and the fish were like when it was filmed, or at what rate it was sampled, and those details are needed later to interpret a model’s results and to rebuild a dataset. There is also a matter of scale: at 60 frames per second a video holds thousands of near-identical frames, and every frame that is kept has to be labelled by hand, so how many to keep matters.

Stage 1 therefore turns each raw video into a small, addressable set of frames, with its metadata stored once and linked to every frame. This chapter describes how the videos were recorded, registered and sampled, and Stage 2 then labels the result.

Aim

Produce a frame-indexed dataset from each video, stored in a relational database, in which every frame is addressable by frame number and timestamp and linked to its video’s metadata, as the input for labelling in Stage 2.

Methods

Pipeline overview

Each video is registered once, then sampled into frames that are written both to disk and to MySQL, as traced in Fig. 1 below. The subsections that follow take the pipeline step by step: first the choice of recording format, then the two tables and the scripts that fill them.

Stage 1 video-registration and frame-extraction pipeline. Raw aquarium video, recorded on an iPhone 14 at 1080p and 60 FPS and switched from HEVC to H.264 after a colour-fidelity bug, is first registered by sync_videos.py, which reads video_metadata.xlsx and inserts one row per video into the MySQL videos table. extract_frames.py then cuts the video into still frames, by default one per second (the sample rate is set in config.yaml). Each selected frame produces two outputs: a JPG file on disk, and a corresponding row in the MySQL frames table (frame_number, timestamp, frame_path, video_id foreign key). Both outputs converge into a single frame-indexed dataset that later stages reference by frame number and timestamp instead of re-decoding the source video, feeding forward into Stage 2's LabelStudio annotation step. — FigStage 1 pipeline: sync_videos.py registers each video in MySQL's videos table before extract_frames.py samples it at 1 FPS, producing two outputs per frame (a JPG on disk and a row in the frames table, foreign-keyed back to videos). The two outputs converge into the frame-indexed dataset every later stage builds on. Cylinders mark the two persistent MySQL tables; boxes mark scripts and file output. Click to zoom.

Choosing a recording format

Initial recordings using iPhone 14 (iOS 26) in HEVC (H.265) format introduced frame-level colour inconsistencies when processed with OpenCV, resulting in degraded colour fidelity during extraction.

This issue comes from how inter-frame compression works: modern codecs store occasional full frames and encode only the pixel differences between them to reduce file size. When OpenCV’s software decoder processes an HEVC-encoded file, colour reconstruction can break down during this decoding process, producing washed-out frames.

Faded frame colours due to HEVC codec — FigFaded colours extracted from an HEVC-encoded MOV file.

To ensure deterministic frame decoding, the recording format on iPhone was switched to H.264 (“Most Compatible” mode). Although this increased storage size, it significantly improved frame consistency and colour stability during extraction.

iPhone camera settings switched to Most Compatible mode — FigCorrect colour reproduction after switching to H.264.

Recordings were standardised at 60 FPS to increase temporal resolution, enabling finer capture of fast behavioural events such as feeding strikes.

Setting up the database

A MySQL 8.4 instance runs inside a Docker container, isolated from any local database installation, with port 3306 exposed so both the Python scripts and MySQL Workbench can connect to it.

Stage 1 creates two relational tables: videos, one row per registered recording, written by sync_videos.py, and frames, one row per extracted frame, written by extract_frames.py and foreign-keyed back to its parent video. Splitting registration from extraction this way means a video’s metadata (species, tank dimensions, filming date) is recorded once, not repeated on every one of its frame rows.

Entity-relationship diagram of the videos and frames MySQL tables. videos holds one row per registered video: id (primary key), file_path (unique, not null), fps, resolution, activity, plants, fish_count, notes, filmed_at, species, morph, and the three tank-dimension columns. frames holds one row per extracted frame: id (primary key), video_id (foreign key referencing videos.id, not null), frame_path, frame_number, timestamp, and extracted_at, with a unique constraint on (video_id, frame_number). A crow's-foot relationship line connects the two: a single bar near videos marks the one side, a three-pronged crow's foot near frames marks the many side, meaning one video has many frames. — FigEntity-relationship diagram for the two tables Stage 1 creates, in standard crow's-foot notation. video_id in frames is a foreign key into videos.id: one video, many frames.

The full table definitions for all four of AquaMind’s MySQL tables (the two added by later stages are covered where they’re introduced) is in schema.sql on GitHub which contains a clean, commented, structure-only file with no data, runnable as-is against a fresh MySQL instances.

Registering videos

sync_videos.py (flow diagram) reads one row per video from video_metadata.xlsx, filled in manually per recording session: species, morph, tank dimensions, activity, fish count, and filming date, the experimental metadata that isn’t in the video file itself. fps and resolution are not taken from the spreadsheet; they’re read directly from the video with OpenCV, so they can’t drift out of sync with the actual file.

The insert is an upsert keyed on file_path, so re-running the script is safe: an already-registered video gets its metadata refreshed instead of duplicated.

Extracting frames

extract_frames.py (flow diagram) reads each video sequentially using OpenCV and selects one frame per second by default (the sample rate is a config setting, and the reported FPS is rounded because iPhone videos report values slightly below 60, such as 59.78). Each selected frame is saved as a JPG to disk. The source video is already H.264-compressed, so lossless PNGs would add file size without adding detail, and JPG is what LabelStudio and YOLO training read directly. In the same step, it’s registered as a row in the frames table, storing its index, its timestamp, and the frame_path pointing back to the JPG.

Results

Ingestion correctness was verified by querying videos and frames directly.

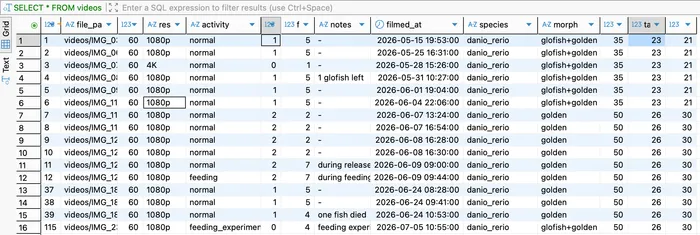

Verification SQL query against the videos table — FigTable videos: one row per registered recording, populated by sync_videos.py, with the experimental metadata (species, tank dimensions, filming date) and the fps/resolution values read directly from each video file.

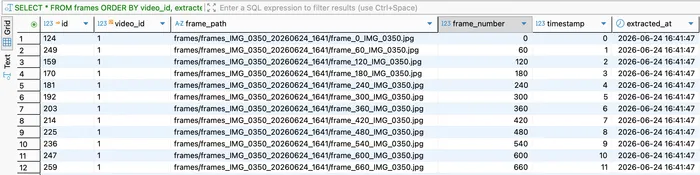

Verification SQL table structure and inserts — FigTable frames: sequential frame_number values, consistent one-second timestamp steps, valid frame_path references to the stored JPG frames, and correct separation between different extraction runs, each row foreign-keyed back to its parent video via video_id.

Discussion

Stage 1 turns raw videos into a queryable dataset. Each video is registered once in a videos table, and its frames are decoded deterministically and saved as JPGs, with one row per frame in a frames table. Frames are sampled at 1 per second by default (the rate is a script parameter), a deliberate compromise. Consecutive frames at 60 FPS are nearly identical, and every frame kept is one that must be labelled by hand, so a sparser sample gives more visual variety per hour of annotation. The result is what Stage 2 needs: a clean, addressable set of frames to load into the labelling tool, and database rows that each bounding box can be joined back to.
